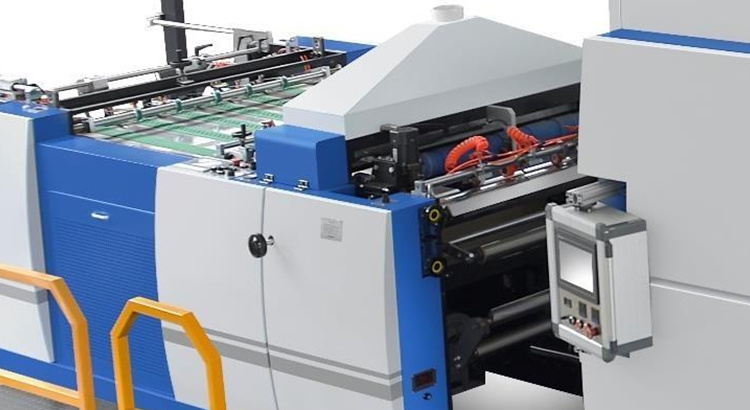

YZFM-1080LG

Automatic Thermal Film Laminating Machine

Category:

PRODUCTS

Chain Knife Laminating Machine

E-mail:

Product Description

Technical advantages
Special technology:
heat transfer oil built-in circulation system
The rolling surface has less temperature difference, goodconstant temperature effect in high-speed operation, savingelectric energy, and faster speed on the premise of ensuring thelamination quality.

Main technical parameters:

Model	YZFM-1080LG
Max.sheet size	W1080×L1450mm
Min.sheet size	W 320×L 350mm
Suitable sheet thickness	105-500 gram
Feeder pile height	1300 mm
Film thickness	0.01-0.02mm
Installed power	39kW (380V AC3φ 50 Hz)
Working power	14-20kW
Mechanical speed	Max.100 m/min,or 11000sheets/hour
Working speed	20-100m/min,(according to different paper,different requirements and different specifications)
Overall dimensions	L10600×W 2100×H 2000 mm

Configuration

Miniature Relay	Moeller,Germany
Contactor	SIMENS,Germany
Botton	Moeller,Germany
Encoder	Panhoff,Germany
Vacuum Air Pump	Becker,Germany
Sensor	Panasonic,Japan/Baumer, Switzerland
Bearing	NSK,Japan
Machine Chain	CHOHO,Japan
Solenoid Valve	SMC,Japen
Frequency Converter	Inovance,China
Feida Serve Motor	Inovance,China
Servo Driver	Inovance,China
PLCControl	Delta,Taiwan

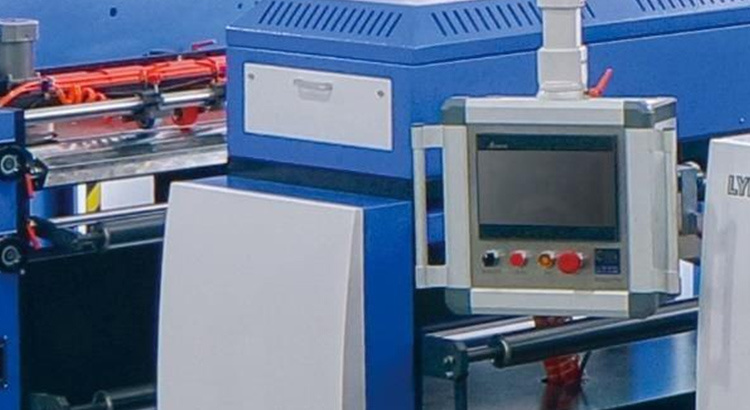

Touch Screen	Delta,Taiwan
Feeder Paper Receiving Brake Motor	Wanshsin,Taiwan
Main Motor	Wanshsin,Taiwan
Pneumatic Components	AirTAC,Taiwan
Conveyor Belt	Habastic,Switzerland

The key of precoating technology is the control of temperature change，
Get the temperature of lamination to ensure the quality of the mulch

Technical advantages
Special technology:
heat transfer oil built-in circulation system

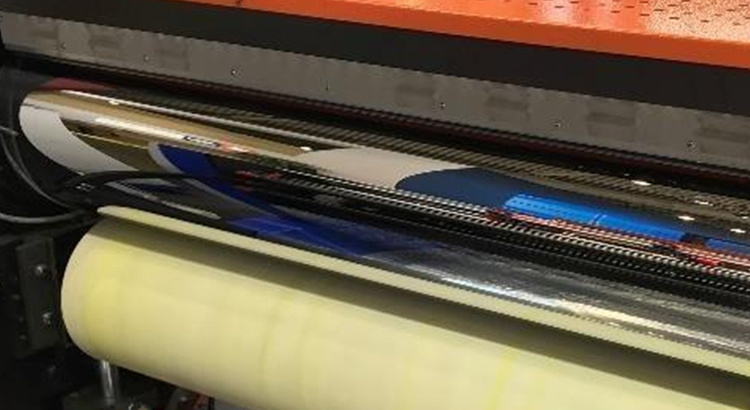

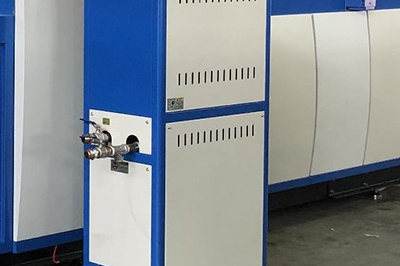

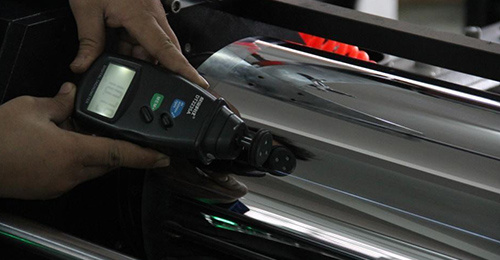

The temperature of the mirror heating roller with a diameter of 380mm is constant by mold temperature machine; There is a heat transfer oil circulation mechanism inside the roller; The larger the roller diameter, the more average the temperature, the better the heat constant temperature effect, and the longer the lamination hot pressing time, the better the lamination effect.
