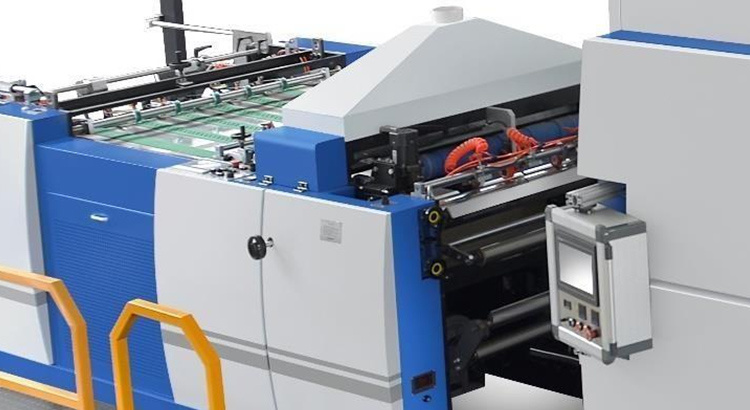

ZFM-1080

Automatic Film Laminating Machine

Category:

PRODUCTS

Thermal Laminating Machine

E-mail:

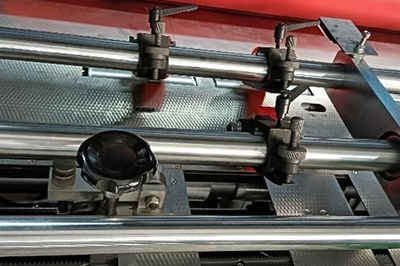

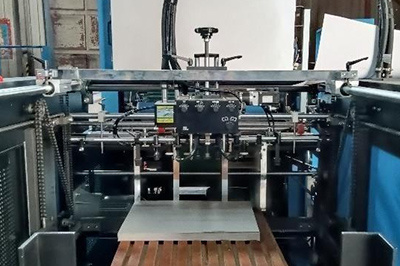

Product Description

Technical advantages
Special technology:
heat transfer oil built-in circulation system
The rolling surface has less temperature difference, good constant
temperature effect in high-speed operation, saving electric energy, and faster speed on the premise of ensuring the lamination quality.

Technical parameters:

Model	ZFM-1080S
Max.sheet size	W1080×L880mm
Min.sheet size	W 320×L 290mm
Suitable sheet thickness	105-500 gram
Feeder pile height	1300 mm
Film thickness	0.01-0.02mm
Installed power	69kW(380V AC3φ 50 Hz)
Working power	18-35kW
Mechanical speed	Max.100 m/min,or 11000sheets/hour
Working speed	20-100m/min,(according to different paper,different requirements and different specifications)
Overall dimensions	L9200×W2900×H 3070 mm

Model	ZFM-1080M
Max.sheet size	W1080×L1200mm
Min.sheet size	W 320×L 290mm
Suitable sheet thickness	105-500 gram
Feeder pile height	1300 mm
Film thickness	0.01-0.02mm
nstalled power	70kW(380V AC3φ 50 Hz)
Working power	18-35kW
Mechanical speed	Max.100 m/min,or 11000sheets/hour
Working speed	20-100m/min,(according to different paper,different requirements and different specifications)
Overall dimensions	L10147×W 2900×H 3070 mm

Model	ZFM-1080L
Max.sheet size	W1080×L1450mm
Min.sheet size	W 320×L 350mm
Suitable sheet thickness	105-500 gram
Feeder pile height	1300 mm
Film thickness	0.01-0.02mm
nstalled power	71kW(380V AC3φ 50 Hz)
Working power	18-35kW
Mechanical speed	Max.100 m/min,or 11000sheets/hour
Working speed	20-100m/min,(according to different paper,different requirements and different specifications)
Overall dimensions	L11732×W 2900×H 3070 mm

Micro relay	Moeller
Contactor	Moeller
Knob,Button	Moeller
Encoder	panhoff
Vacuum pump	Becker
Sensor	Panasonic
Bearing	NSK/UBC
Chain	CHOHO
Solenoid Valve	SMC
Frequency converter	novance
Feeder servo motor	novance
Servo driver	novance
PLC	Delta

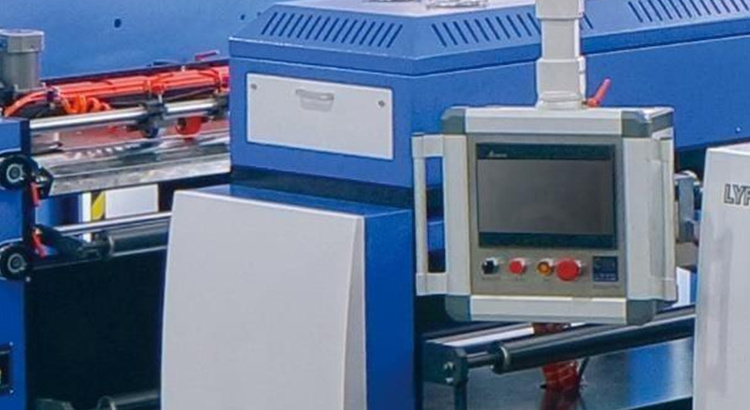

Touch screen	Delta
Feeder/Stacker Brake motor	WANSHSIN
Main Motor	WANSHSIN
Pneumatic components	AirTAC
Conveyor belt	Habasit

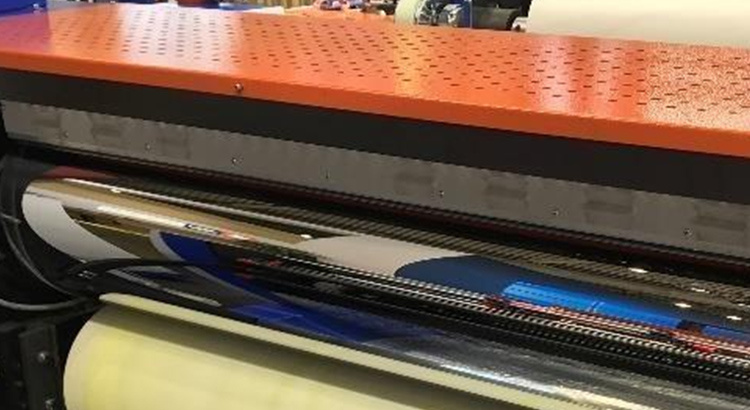

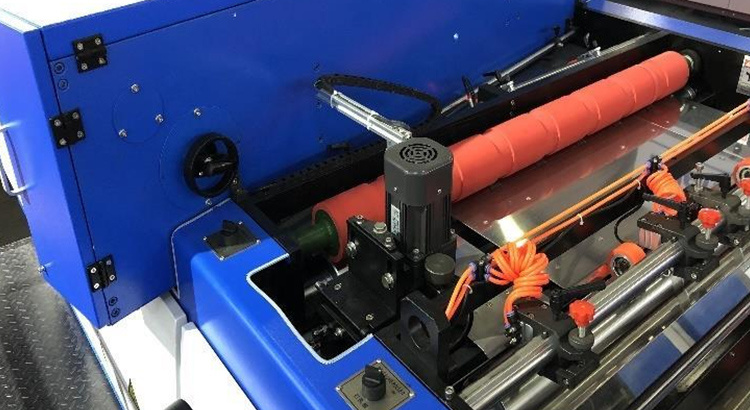

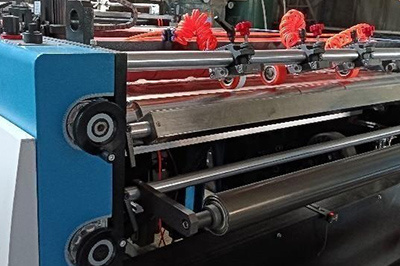

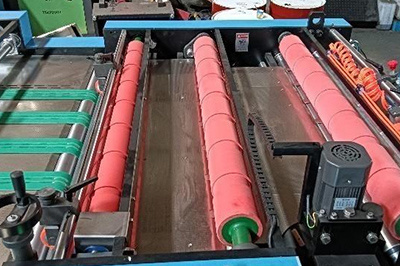

The large-diameter hot roller for drying the glue adopts heating tubes for constant temperature, the roller surface temperature is balanced, and the film can be dried with hot air. The water- based glue can be solidified quickly to achieve the purpose of high-speed film lamination; The roller surface is chrome plated and polished, with long service life and easy cleaning;

Technical advantages
Special technology:

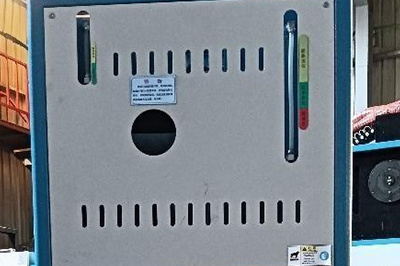

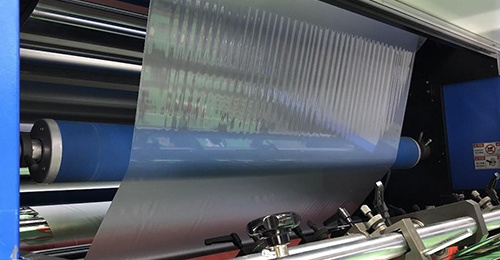

heat transfer oil built-in circulation system The temperature of the mirror heating roller with a diameter of 380mm is constant by mold temperature machine; There is a heat transfer oil circulation mechanism inside the roller; The larger the roller diameter, the more average the temperature, the better the heat constant temperature effect, and the longer the lamination hot pressing time, the better the lamination effect.

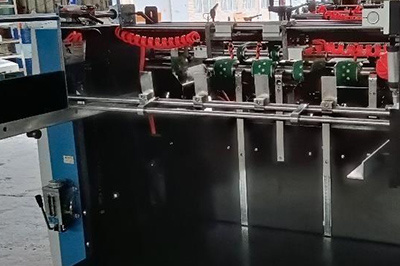

Configuration:
