ZFM-1080MCL

Automatic Chain knife Film Laminating Machine

Category:

PRODUCTS

UV Coating Machine

E-mail:

Product Description

Technical advantages
Special technology:
heat transfer oil built-in circulation system The rolling surface has less temperature difference, good constant temperature effect in high-speed operation, saving electric energy, and faster speed on the premise of ensuring the lamination quality

Technical parameters

Model	ZFM-1080MCL
Max.sheet size	W1080×L1200mm
Min.sheet size	W260×L 320mm
Suitable sheet thickness	105-500 gram
Feeder pile height	1300 mm
Film thickness	0.01-0.02mm
Installed power	79kW(380V AC3φ 50 Hz)
Working power	18-35kW
Mechanical speed	Max.100 m/min,or 10000sheets/hour
Working speed	20-100m/min,(according to different paper,different requirements and different specifications)
Overall dimensions	L12400×W 2900×H3100 mm

Main Parts

Miniature Relay	Moeller,Germany
Contactor	SIMENS,Germany
Botton	Moeller,Germany
Encoder	Panhoff,Germany
Vacuum Air Pump	Becker,Germany
Sensor	Panasonic,Japan/Baumer, Switzerland
Bearing	NSK,Japan
Machine Chain	CHOHO,Japan
Solenoid Valve	SMC,Japen
Frequency Converter	Inovance,China
Feida Serve Motor	Inovance,China
Servo Driver	Inovance,China
PLC Control	Delta,Taiwan
Touch Screen	Delta,Taiwan
Feida Paper Receiving Brake Motor	Wanshsin,Taiwan
Main Motor	Wanshsin,Taiwan
Pneumatic Components	AirTAC,Taiwan
Conveyor Belt	Habastic,Switzerland

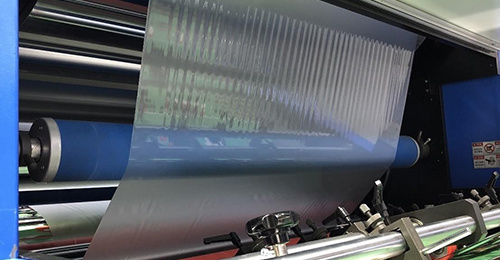

The large-diameter hot roller for drying the glue adopts heating tube for constant temperature, the roller surface temperature is balanced, and the film can be dried with hot air. The water- based glue can be solidified quickly to achieve the purpose of high-speed film lamination; The roller surface is chrome plated and polished, with long service life and easy cleaning;

Technical advantages Special technology: heat transfer oil built-in circulation system The temperature of the mirror heating roller with a diameter of 380mm is constant by mold temperature machine; There is a heat transfer oil circulation mechanism inside the roller; The larger the roller diameter, the more average the temperature, the better the heat constant temperature effect, and the longer the lamination hot pressing time, the better the lamination effect.
Sheets Cutting method:
Chain knife cutting system
